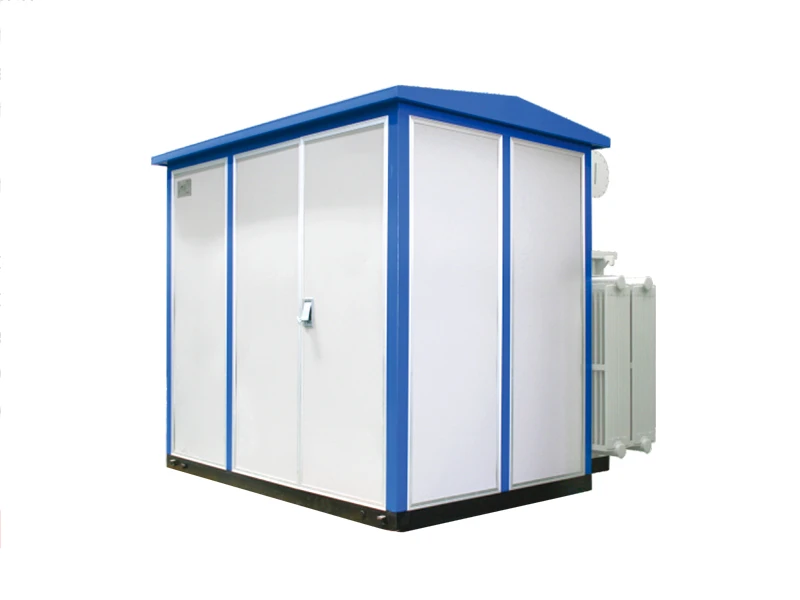

The YBF口-40. 5/0.69 series compact wind power prefabricated substation (hereinafter referred to as the compact prefabricated substation) is a specialized device that elevates the voltage generated by wind turbines from 0.6~0.69kV to 35kV and outputs it to the grid. The compact prefabricated substation is a new product developed by our company based on user needs and combining the advantages of European and American prefabricated substations. This product reduces the cost of European Prefabricated substations and addresses the shortcomings of incomplete protection in American prefabricated substations and poor ventilation in European Prefabricated substations. It is applied in various wind power generation locations and is the best supporting product for wind power generation systems.
Ambient Condition
Cooling conditions: Air self-cooling
Operating environment:
Altitude not exceeding 2000m.
Monthly average temperature not exceeding 30[ C, annual average temperature not exceeding 20°C.
Air relative humidity not exceeding 95% at 25°C, monthly average not exceeding 90%.
Horizontal acceleration not exceeding 0.3g, vertical acceleration not exceeding 0.15g.
Installation environment should be free from obvious contamination, explosive, corrosive gases, and dust. The installation site should have no severe vibration and shock, requiring installation on a cement platform or other flat and solid platform.
Note: For conditions exceeding the specified technical requirements, users should negotiate solutions with the company.
Product F eatures
1. Small size, compact structure, and easy installation.
2. Can be used for both grid and terminal, convenient for conversion.
3. Low loss, low noise, and superior performance.
4. The box is equipped with an anti-theft structure.
5. Low temperature rise and strong overload capacity
